Biomass Wood Chips Pellet Line Eucalyptus Pine Birch Complete Pellet Production Line

Biomass Wood Chips Pellet Line

Wood Chips Pellet Line Eucalyptus

Birch Complete Pellet Production Line

Tempat asal:

Cina

Nama merek:

Zhongdebao

Sertifikasi:

CE BV

Nomor model:

EWPL-420R

Hubungi kami

Permintaan Penawaran

Rincian Produk

Aplikasi:

Keripik, Biskuit, Makanan Ringan, Makanan Ringan Puff / Makanan Ringan Jagung / Jalur Proses Makanan

Layanan purna jual disediakan:

Insinyur tersedia untuk melayani mesin di luar negeri, Instalasi lapangan, komisioning dan pelatihan

Tegangan:

380V/50HZ, 380v, 50hz, 380V/50HZ/Tiga Fase, 220V/50HZ/Fase Tunggal atau Ubah Sesuai Kebutuhan

Daya (w):

45KW, 256kw, 195kw, 80KW, 22/30/55/75/90kw

Jaminan:

1 Tahun, satu tahun, 12 BULAN

Berat:

500kg, 6000kg, 1200kg, 2-10TON, 2000

Dimensi (L * W * H):

30000*5000*3500mm, 3.2*1.1*2m, 21*2*3m, 3.5x1.05x1.96m, Sesuai kapasitas

Kondisi:

Baru

Kapasitas:

100kg/jam 200kg/jam 500kg/jam 1000kg/jam hingga 20ton/jam

Bahan:

Baja paduan baja karbon

Motor:

Simens, motor Cina atau Simense

Nama Produk:

lini produksi pelet kayu biomassa

Warna:

biru putih hijau warna apapun bisa disesuaikan

Jenis:

lini produksi pelet kayu biomassa

Bahan baku:

wood chips Eucalyptus pine birch poplar Rice husks, peanut husks, melon seed husks, bamboo shavin

Motor utama:

22kw 30kw 37kw 55kw

Keluaran:

300kg/jam 500kg/jam 800kg/jam 1000kg/jam 1,5ton/jam 1,8-2ton/jam 2,5-3ton/jam

Tahun:

2023

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order

1

Harga

price negotiable

Kemasan rincian

dengan paket kotak kayu atau langsung dimuat ke dalam wadah

Waktu pengiriman

5-8 Hari Kerja

Syarat-syarat pembayaran

L/C, T/T, Serikat Barat

Menyediakan kemampuan

999 set per bulan

Produk-produk terkait

Video

Baru Datang 1000-5000kg / jam Mesin Pembuatan Pellet Kayu Produktivitas Tinggi Set Kayu Mill Produksi Line

Dapatkan Harga Terbaik

Video

Commercial Automatic wood pellet production line for fuel sale

Dapatkan Harga Terbaik

Video

1Ton / Hour Custom Biomass / Wood Pellet Production Line With CE

Dapatkan Harga Terbaik

Video

Selesaikan Lini Produksi Pelet Kayu Serbuk Gergaji Biomassa 1~5T/H Untuk Pemanasan

Dapatkan Harga Terbaik

Hubungi kami

86-371-86546711

Hubungi sekarang

Deskripsi Produk

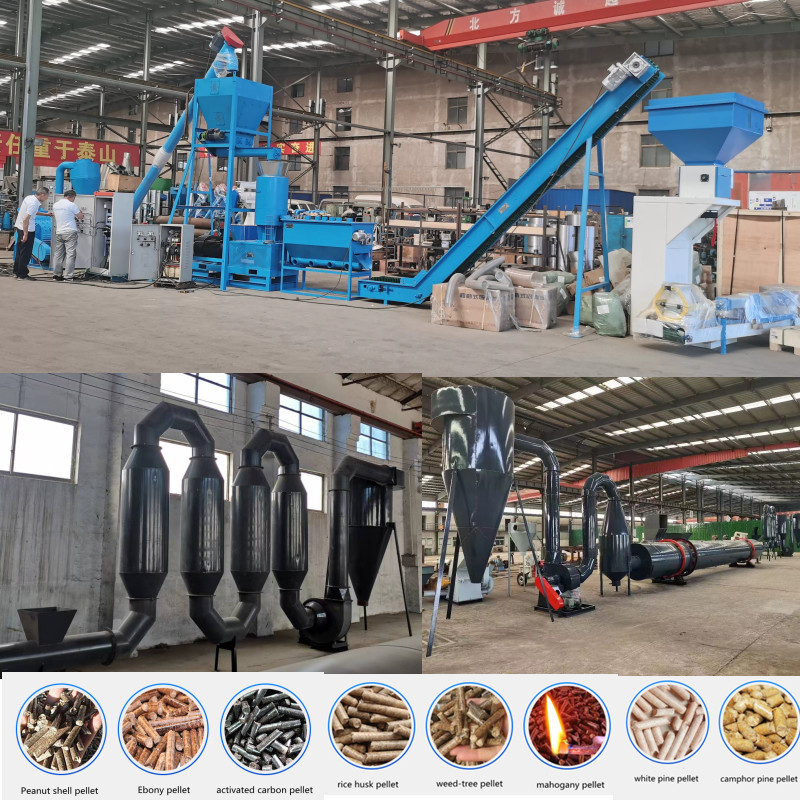

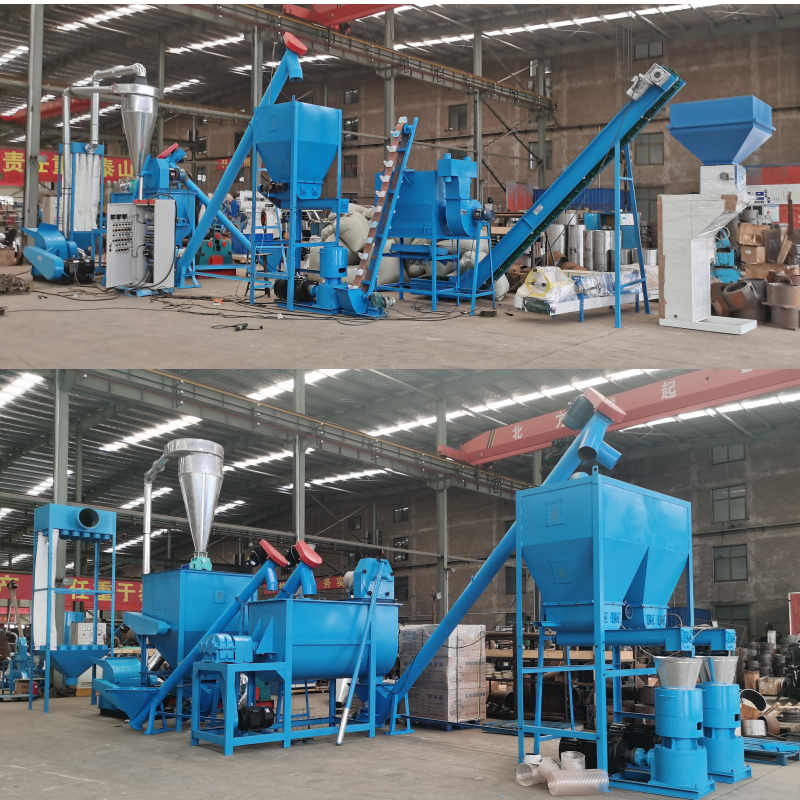

500kg/h Biomass wood chips Eucalyptus pine birch poplar complete pellet production line

The sawdust pellet machine is a biomass new energy equipment and a granulation equipment for the production of sawdust pellets; Using eucalyptus, birch, poplar, fruit wood, bamboo shavings, and crop straw as raw materials, finished wood shavings are produced through processes such as crushing, drying, granulation, cooling, and packaging. Its finished products are used in biomass power generation, boilers, fireplaces, household equipment, etc.

This 500kg/h Biomass wood chips Eucalyptus pine birch poplar complete pellet production line with total power : 79.91kw

Crushing system :

Cutter grinder : 22kw

Drying system :

Conveyor : 3kw

Drying machine : 4kw

Granulation system :

Screw feeder : 4+0.55kw with broken arch

Stock bin

Feeder : 0.75kw with broken arch

pellet machine : 55kw

Cooling system :

Trommel screen : 5.15kw

Packing system :

Conveyor : 2.2kw

packing machine : 1.26kw

Control system :

Electric control cabinet

Total power : 79.91kw

For the wood biomass pellet mold/die the diameter generally will be 6mm or 8mm .

We also have animal feed pellets machines line , so we can also offer you animal feed pellet line machines . here it is the flat die for making different kinds of animal feeds .

The finished sample wood biomass pellet for your reference :

Pellet machine details picture :
