10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine

10TPH Biomass Pellet Production Line

Biomass Pellet Production Line Eucalyptus

Birch Wood Chip Pellet Machine

Tempat asal:

Cina

Nama merek:

Zhongdebao

Sertifikasi:

CE BV

Nomor model:

PL-1-10TPH

Hubungi kami

Permintaan Penawaran

Rincian Produk

Aplikasi:

Keripik, Biskuit, Makanan Ringan, Makanan Ringan Puff / Makanan Ringan Jagung / Jalur Proses Makanan

Layanan purna jual disediakan:

Insinyur tersedia untuk melayani mesin di luar negeri, Instalasi lapangan, komisioning dan pelatihan

Tegangan:

380V/50HZ, 380v, 50hz, 380V/50HZ/Tiga Fase, 220V/50HZ/Fase Tunggal atau Ubah Sesuai Kebutuhan

Daya (w):

45KW, 256kw, 195kw, 80KW, 22/30/55/75/90kw

Jaminan:

1 Tahun, satu tahun, 12 BULAN

Berat:

500kg, 6000kg, 1200kg, 2-10TON, 2000

Dimensi (L * W * H):

30000*5000*3500mm, 3.2*1.1*2m, 21*2*3m, 3.5x1.05x1.96m, Sesuai kapasitas

Kondisi:

Baru

kapasitas:

1000kg / jam hingga 10 ton / jam

Bahan:

Baja paduan baja karbon

Motor:

Simens, motor Cina atau Simense

Nama Produk:

lini produksi pelet kayu biomassa

Warna:

biru putih hijau warna apapun bisa disesuaikan

Jenis:

lini produksi pelet kayu biomassa

Bahan baku:

wood chips Eucalyptus pine birch poplar Rice husks, peanut husks, melon seed husks, bamboo shavin

Motor utama:

22kw 30kw 37kw 55kw

Keluaran:

300kg/jam 500kg/jam 800kg/jam 1000kg/jam 1,5ton/jam 1,8-2ton/jam 2,5-3ton/jam

Tahun:

2023

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order

1

Harga

price negotiable

Kemasan rincian

paket kotak kayu dan langsung dimuat ke dalam wadah

Waktu pengiriman

5-8 Hari Kerja

Syarat-syarat pembayaran

L/C, T/T, Serikat Barat

Menyediakan kemampuan

100 set per bulan

Produk-produk terkait

Video

Baru Datang 1000-5000kg / jam Mesin Pembuatan Pellet Kayu Produktivitas Tinggi Set Kayu Mill Produksi Line

Dapatkan Harga Terbaik

Video

Commercial Automatic wood pellet production line for fuel sale

Dapatkan Harga Terbaik

Video

1Ton / Hour Custom Biomass / Wood Pellet Production Line With CE

Dapatkan Harga Terbaik

Video

Selesaikan Lini Produksi Pelet Kayu Serbuk Gergaji Biomassa 1~5T/H Untuk Pemanasan

Dapatkan Harga Terbaik

Hubungi kami

86-371-86546711

Hubungi sekarang

Deskripsi Produk

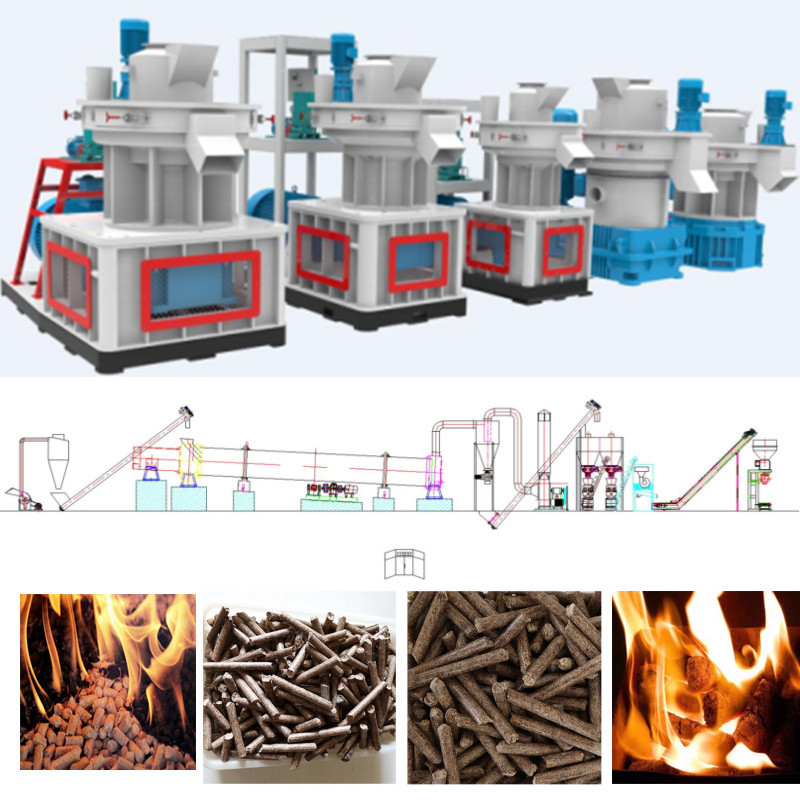

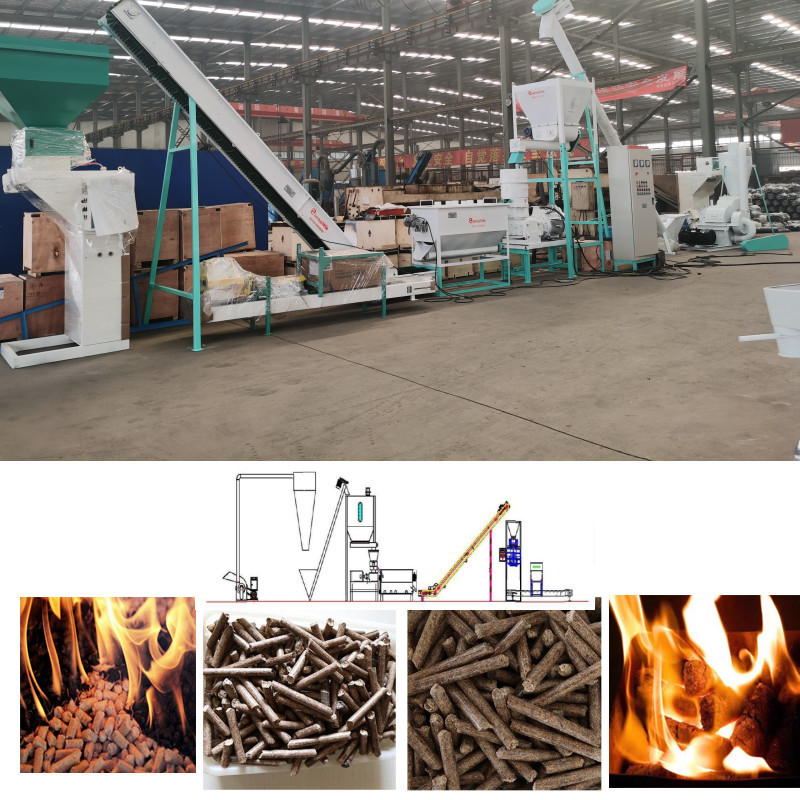

1TPH-10TPH Biomass Wood Chips Eucalyptus Pine Birch Poplar Pellet Production Line

(Chipping---Grinding---Drying---Pelleting---Cooling&Screening---Packing process).

The wood pellet line machines can make a variety of biomass raw materials into pellets. Its diameter is generally 6/8/10/12mm, and its water content is 10-15%. Biomass pellets have a wide range of sources, and common raw materials are:

raw mateiral : wood logs , sawdust planks , straws , other biomass wastes Etc.

Forestry Waste: such as waste wood, waste branches, sawdust, etc.
Agricultural Waste: such as crop straws, rice husks, peanut husks, bagasse, palm kernel husks, etc.
Construction Waste: such as waste paper, wooden frames, wooden templates, etc.

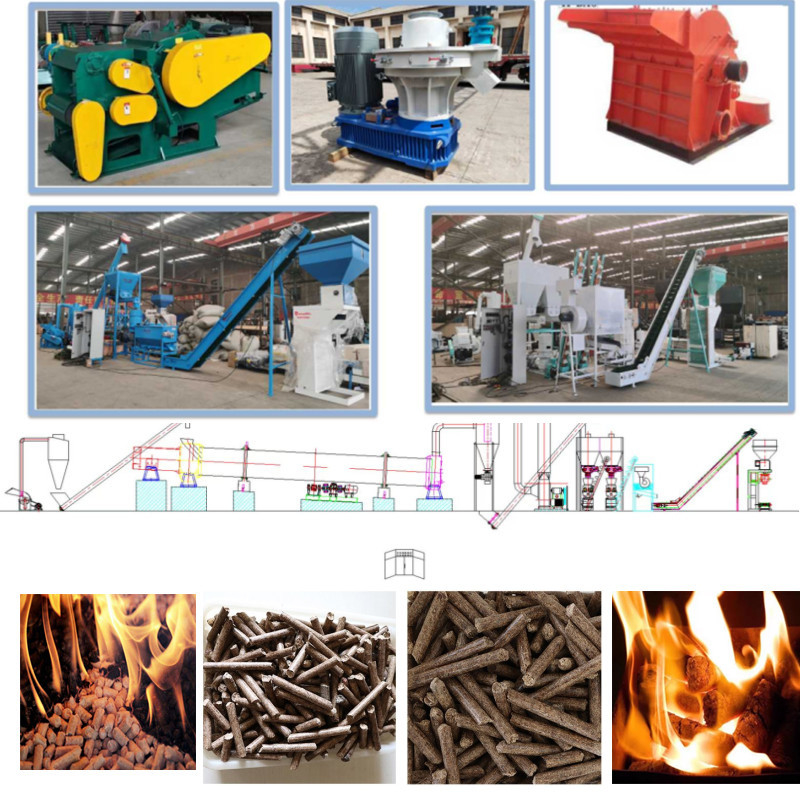

Main machines used : Wood pellet mills , Drum type wood chipper , Hammer mill , Rotatry drum type drying machine, counterlflow cooler , Automatic packing system .

Application of Biomass pellets :

Biomass pellets are made by recycling waste and are a new type of environmentally friendly fuel , widely used in residential heating equipment , power plants , boiler plants . etc. It has the characteristics of large heat generation , low ash content , low enviromental pollution, and recyclablility .

Commly used in Fireplace , biomass power plant , boiler fuel , Household biomass stove .

The advantages of Zhongdebao wood granulator machine's ring die ?

The ring die is the core coponent of the pellet machine ,and the quality of the ring die affects the life of the pellet machine .

The ring die of the Zhongdebao biomass pellet machine is made of 42CrMo , which is more wear-resistant and durable than ordineary alloy steel or carbon steel ring die .

The special surface carburizing treatment increases the surface hardness of the ring die and significantly improves the service life .

Compressed step release hole is adopted to ensure that the material enters teh die hole smoothly .

The high hole opening rate of ring die to ensure the continuous high output of the plellet machine .

Model

VR450

VR560

VR600

VR600A

VR700A

Power(kw)

55+0.37

90+1.5+0.37

110+2.2+0.37+0.65

132+2.2+0.37+0.65

160+2.2+0.37+0.65

Voltage

380v/220v 50hz 60hz customized

Rotation speed

1450r/min

Pellet size

4-12mm

Pelletize temperature

40-80 ℃

raw material moisture

15-25%

Weight

2.9T

5.6T

6.5T

7T

8T

Size

2160*1000*1850

2300*1250*2000

3100*1300*2100

2200*1200*1750

2460*1400*2000

Ring die inner diameter

450

560

600

600

700

Capacity

0.8-1T/H

1.2-1.5T/H

1.8-2T/H

2-2.5T/H

2.5-3T/H

For the pellet mold/die the diameter generally will be 6mm or 8mm .

The finished sample pellet for your reference :

Tag：

Lini Produksi Pelet Kayu 800kg/Jam

Lini Produksi Biomassa Mati Datar

Mesin Pelet Pemanas Biomassa

Kirimkan pertanyaan Anda langsung kepada kami

Model	VR450	VR560	VR600	VR600A	VR700A
Power(kw)	55+0.37	90+1.5+0.37	110+2.2+0.37+0.65	132+2.2+0.37+0.65	160+2.2+0.37+0.65
Voltage	380v/220v 50hz 60hz customized
Rotation speed	1450r/min
Pellet size	4-12mm
Pelletize temperature	40-80 ℃
raw material moisture	15-25%
Weight	2.9T	5.6T	6.5T	7T	8T
Size	216010001850	230012502000	310013002100	220012001750	246014002000
Ring die inner diameter	450	560	600	600	700
Capacity	0.8-1T/H	1.2-1.5T/H	1.8-2T/H	2-2.5T/H	2.5-3T/H
